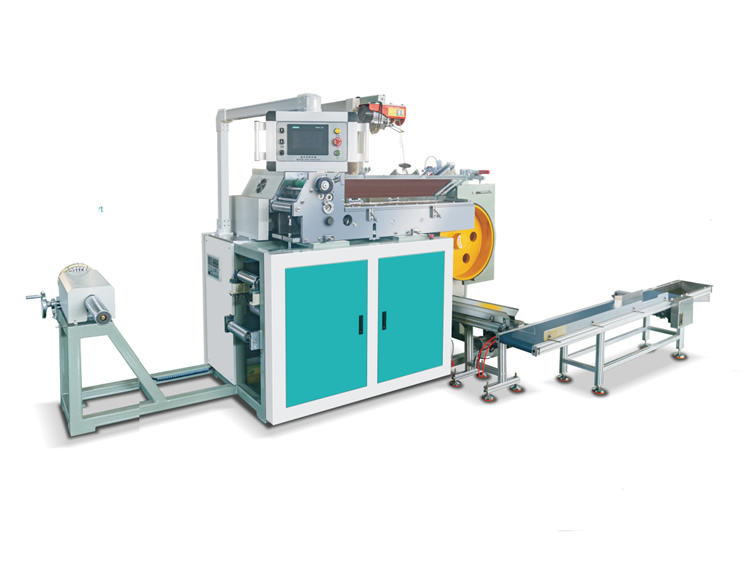

1. Technical parameters of paper stick machine:

Paper rod diameter：1.8-3mm 4-5mm 5-6mm

Paper stick length：50-210mm（Length can be customized）

Productivity：50-1800pcs/min

Paper thickness：60-100g/m²

Applicable glue：Polyvinyl alcohol glue, starch glue

Paper requirements：Single gloss paper

Power Supply：380V 50HZ

Total Power：9.25KW

Dimensions：3410*2020*2170mm

weight：1800KG

2. Paper stick machine configuration:

Touch Panel：Siemens:Smart700IE V3

PLC：Siemens:Smart SR20

Inverter：Siemens:v20，3Kw

Circuit Breaker：Eaton:E6-32/3/C

Contactor：Eaton:XTCG018C00DT

Relay：Schneider:RXM2LB2BD

Switching Power Source：Eaton:A22-STOP/K10

Proximity Switch：Otonix:PRE12-2DN

3. Main features:

1.The paper sticks are used in cotton sticks, perfume sticks, cakes,lollipops, shoe support and other products or industries.

2. Paper stick machine usually produce products more than 2.Ommdiameter.

3. By adopting the cylinder lifting operation mode, the labor intensityis significantly reduced, effectively alleviating the burden on workers.

4. Adopt the man-machine interface, intuitive display, simple operation.With multiple sets of memory devices, changing the the product doesnot need to reset.

5. The parts are treated by welding, finishing and special treatment toensure good quality. Stable machine performance, and long service life.

4. Finished product:
